SALONI ENGINEERING has successfully designed SUCTION ROLLS for use in different positions of Paper Machine which includes both SUCTION COUCH ROLL and SUCTION PRESS ROLLS. Within very short period SALONI has developed SUCTION ROLL INTERNAL BOXES with Single OR Double Zone applications. Because of versatile practical experience of the Engineering team, SALONI's SUCTION BOX INTERNALS for different rolls have been proved to be delivering smooth and desired performances in each application with all satisfaction of the Customers.

Special attention and efforts are given In designing and manufacturing a flawless internal Box along with as perfect workmanship as possible.

Mostly experienced design engineering team works on Suction roll internal Box designing . In case of each roll, Special stress is given on all aspects of the applications for which the Suction roll is intended for. Dedicated and highly experienced & Skilled manufacturing team works on fabrication and machining of the INTERNAL BOX of the Suction Roll.

Thorough inspection at each stage of manufacturing and immediate action on any necessary rectification.

Being most vital part of Paper Machine with respect to Machine Operation SALONI always tries to provide best material and components to ensure perfect and stable runnability of the SUCTION ROLL. Highly experienced team headed by specialist Senior Engineer works on assembly of the Internal Box and its properfitment into the Roll Shell.

Paper leaves the Press section and enters the dryer at consistency of 40-50%. The dryer causes further water removal by evaporation. A typical dryer section consists of from 20 to 70 steam-heated dryer cylinders. The sheet is held in intimate contact with the heated surfaces by means of dryer felts. Drying cylinders are used in the paper industry for the manufacture of paper, board, speciality papers & tissues. Our Alloyed Cast Iron Cylinders are used for installations after Size Press, after Coating and for cooling applications.

• We design and produce Heavy Duty Frame in Mild Steel, suitable for 1200, 1500 and 1800 mm dia. Drying Cylinders and also for M G Cylinders up to 5000 mm dia.
• Dryer Frames design with rigid tie in Heavy Duty M. S. fabrication, capable of withstanding high speed vibrations.
• Best doctoring arrangement (Fixed and Oscillating).
• Felt Rolls, Doctors, Auto Guides, Felt Stretchers, Gear and Pinions, Silent Drives corresponding to machine speed & requirements.

We also offer a wide range of imported and indigenous, dynamically balanced Drying Cylinders of 1200 to 1800 mm dia. in graded Cast Iron with operating Steam Pressure up to 4.5 kg/cm2

Some Paper machine contains this unit for the application of certain liquid media to the web surface. The process of applying starch solution, sizing agent or mixture of both is called surface sizing. The objective is to increase the paper strength and to modify the surface properties of the paper with respect to liduid uptake during Writing, Printing or Coating on the paper.

Size Press is the tool which gives an economically feasible way for Paper Makers by enhancing physical strength properties of Paper and the Starch Coating partially substitutes the need of high cost Imported Waste Paper in ultimate furnish.

Size Press in every configuration i.e. Inclined , Horizontal for online Sizing of Paper and Paper Boards. A far reaching range of exceptional quality Size Presses (with Size Preparation Kitchen) manufactured and supplied by us in last several years are relentlessly giving excellent results.

Size Press Rolls are coated with special grades of Rubber and Micro Rock to withstand Heat and give perfect sizing Nip Loading arrangements with pneumatic/ hydraulic operations. Size Kitchen Equipments are contracted with Stainless Steel with standard precision Pumps, Agitators, Vibro Screen etc.

Advantages of Size Press

• High Sizing Efficiency
• High Operational Reliability
• Small Space Demands
• Surface Sizing - to get an effective quality improvement of produced paper and reduce sizing cost.
• Surface Dyeing - costs saving compared to dyeing in substance, reaching of special color effects and educing of waste water pollution
• Thin Layer of Special Coats - Thermoplastics, Pigments, Clays etc.

After the calender stack, the paper web is wound into a large roll at the end of the paper machine, called a reel. The calendering and reeling operations are the last part of the continuous paper machine.

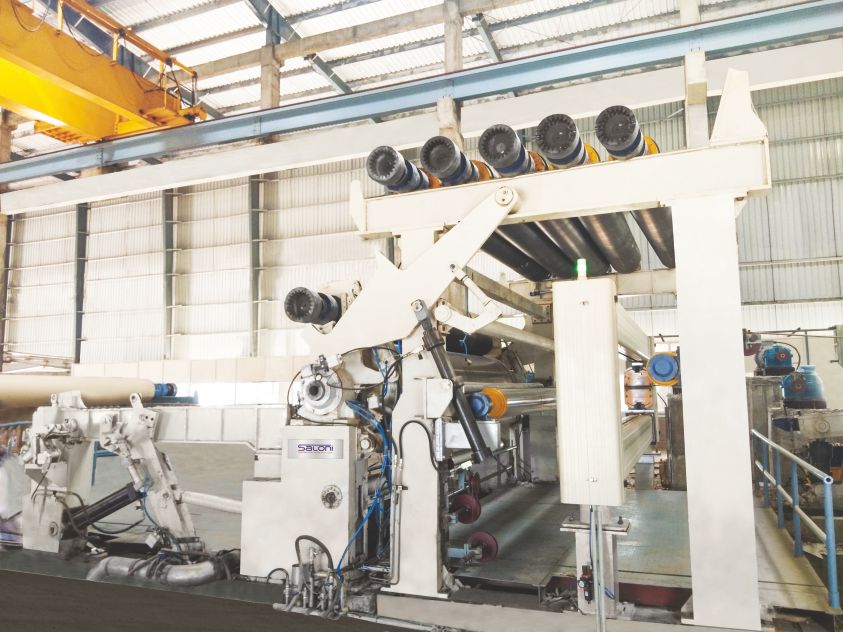

Highly efficient and technologically smart Pope Reeler with Spool Loader is the need of modern Paper Machines and we are the proud manufacturer and supplier of number of successfully running units.

Reel face up to 5000 mm and Jumbo Roll dia. up to 2500 mm appropriately suitable for 30 to 550 GSM Paper and Paper Board.

Advantages of Pope Reel

• Excellent roll build up with large diameters up to 2500 mm
• Medium speed capability up to 750 mpm in line with present day medium sized paper mill demands.
• Large deckle width up to 5 mtrs Over head empty spool storage Reel turn up.
• Operations semi/fully automated either by Goose neck type or equivalent.
• Conventional electro mechanical controls for precise winding.
• User friendly operator controls
• Improved paper winding
• Easy and fast maintenance
• Bump less transfer controls
• Tight & uniform winding

When paper are wound to full size on Pope reel. The full reel is transfer to winder where it is Rewinding & Longitudinal Slitting of Paper Web from the paper roll of desire size.

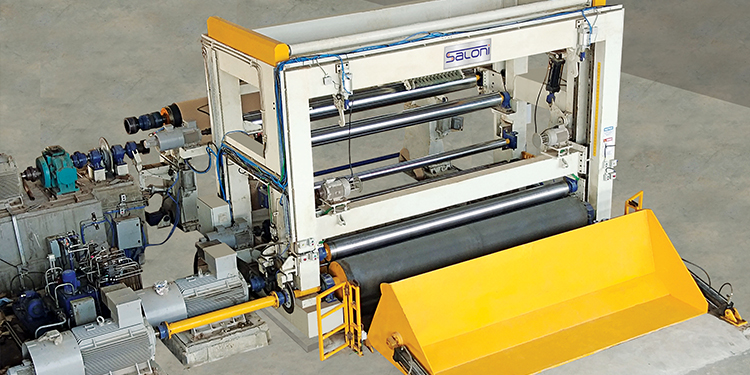

Our Twin Drum winder achieves outstanding winding results even with large reel diameters. Twin Drum winder has simple and easy operation to several advantages such as high slitting quality, large finished reels, high output, low down times and auto set changes

Features of Rewinder

• Rewinder design for Low GSM Range (40-70) of Paper Like Writing & printing, News Print. Also for Medium GSM Range ( 100- 350) like Kraft Paper & for Heavy GSM Range ( 350-600) Paper Like Board , Coated board.
• Auto Aligned Imported knife system for excellent slitting quality.
• Robust and sturdy design frame to with stand vibration at 1800 MPM.
• Easy and compact design web threading consist of conveyor belt, chutes & Air nozzles.
• From optimum winding achieved by Auto controlled Rider roll Nip Relieving , Tungsten Carbide Surface coating on drum roll.
• Easy and time saving shaftless design (Core Chuck )
• Empty spool ejection system.
• Linear motion guide rail provide friction less & Maintenance free operation.
• Suction of trimming Equipments.
• Hydraulic controlled Reel Pusher & Ejection.
• Back cutting system.
• Spreader roller for Correct web guiding.
• Load cell for Reel Tension control.
• Auto set change of finished reels through PLC, Reduce down time of winding operation.
• Brake Generatorfor Energy saving & reduce power consumption.
